Typical Optical/ Electrical Characteristics@Ta=25℃
Power Dissipation  :1W-3W
Forward Voltage : 1.4-2.0V
DC Forward Current  :350 （MAX=1000mA ）
Luminous Flux (or Radiation Power): 100-120mW
Color Temperature(or WaveLength ): 720-730-740-745nm
CRI :---
1/2 Power Angle :120度

Features :

● 100% foot print compatible with Cree XP-C / XP-E / XP-E2 IR / XP-G for gown light 、PK2N series

● High Power LED with Wavelengths between 365-940nm

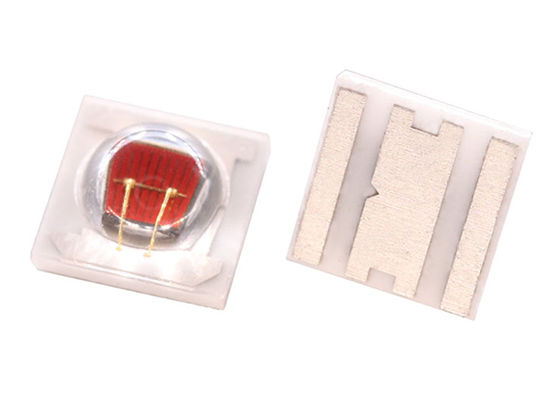

● Smaller size 3.5mm x3.5mm Ultra-thin package size, more flexible design

● 120° viewing angle at 50% Iv

● LowThermal Resistance - 3.4 C/W  Ceramic, Heat dissipation is faster

● RoHS compliant

Applications ：

Widely used in horticultural lighting, automotive taillights, LED plant growth lights, stage lighting, LED ceiling light, PAR lamp, LED high power flood light, LED high power wall washer, LED medical equipment, UVLED curing printer, LED Welcome Lights, LED warning lights, LED surveillance cameras, led light tubes, LED bulb lights, LED panel lights, LED street lights, LED lights, miner's lamps, flashlights, lighting, spotlights and other lighting fixtures and outdoor billboards, traffic lights, signs Brand, electronic display, LED light module, LCD backlight, led lighting, LED soft/hard light, etc. are the best choice to replace the traditional lighting source and imitation lumen light source.
